Philips
model 796A
General
features
|
Radio type |
Mains powered table radio |
|
Circuit type |
Superheterodyne, 128kHz IF with
delayed AVC |
|
Dimensions |
17.5kg |
|
Cabinet |
Wood, cloth grille, printed glass
dial in Bakelite bezel, metal ornament |
|

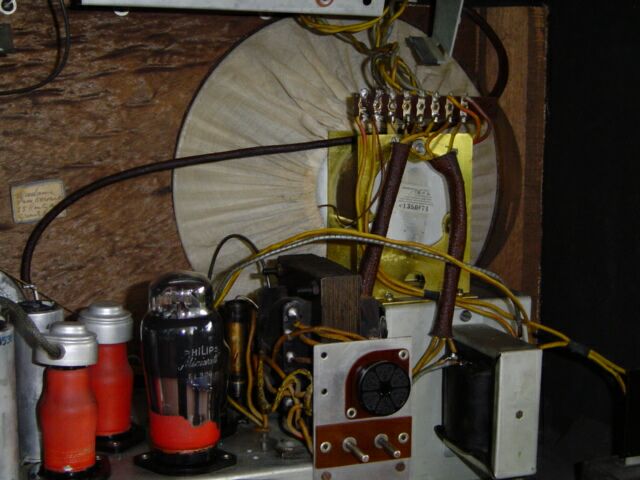

Loudspeaker |
250mm, moving coil, permanent
magnet |
|
Main controls |
Volume, tone/IF bandwidth, tuning,
power/waveband/PU switch |
|
Extra controls |
Mains/external antenna,
speech/music reproduction, LS on/off |
|
Connections |
Antenna, ground, extra LS, PU |
|
Power |
AC, 110-245V in 6 steps, 50W |
Wave
bands
|
LW |
708-2000m |
|
MW |
185-585m |
|
SW |
16.7-51m |
Circuits
and Tubes
|
Oscillator and mixer |
EK2 octode |
|
IF amplifier |
EF5 remote cutoff pentode |
|
Detector and audio amplifier |
EBC3 duodiode-triode |
|
Audio power amplifier |
EL3 9W power pentode |
|
Rectifier |
EZ3 indirectly heated dual power
diode |
|
Tuning indicator |
EM1 triode-fluorescent tube |
